Telescopic Nozzle CY-SS
Retractable CIP nozzle. When not in use, the nozzle head is flush with the inner wall of the equipment to be cleaned (spray drying chamber, cyclone separator, fluidized bed, storage tank, pipeline, etc.). The retracted position during operation will not interfere with the process. and eliminate product entrapment. During operation, water is pumped under pressure to the nozzles, which forces the nozzle heads into the correct position to clean the equipment. Once the water supply stops, the nozzle head automatically retracts to its starting position.
Features:
- The high-impact cleaning nozzle adopts hygienic design
- Suitable for CIP-fluid direct drive
- Automatic lubrication
- Impact radius 1.8m
- Support drawing customization
Product specifications:
- Wet radius: up to 4.5 meters
- Impact cleaning radius: up to 1.8 meters
- Spray angle: 70-150°
- Maximum working temperature: 120℃
- Maximum ambient temperature: 150℃
- Liquid supply pressure: 1.8-4 bar
- Recommended pressure: 2 bar
- Liquid flow: 1.8 m3/h @2 bar
- Clean impact radius blind spot is less than 30°

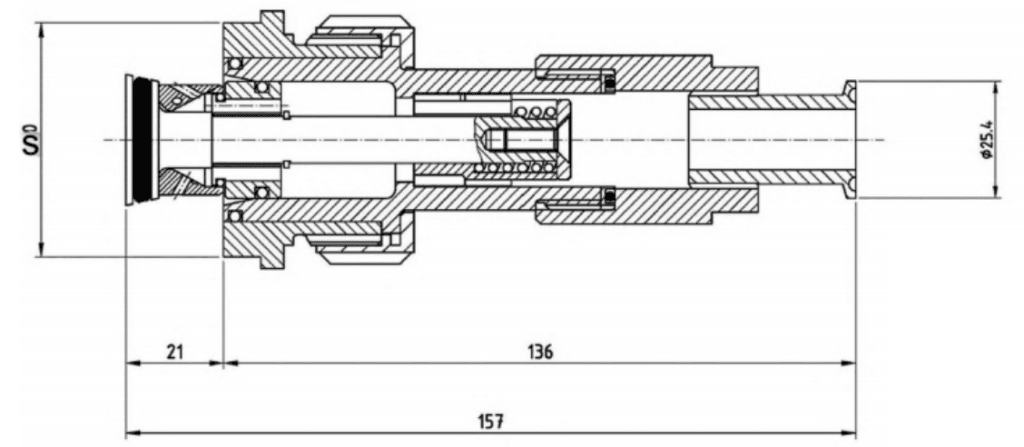

Product Size:


Applications:
Food and beverage industry, pharmaceutical industry, biological fermentation, petrochemical industry, spray drying chamber, cyclone separator, fluidized bed, reactor, storage tank, pipeline, etc.
