CY100 Rotary Tank Cleaning Nozzle
360° cleaning without dead zone
When the cleaner is working, confirm the direction of the four nozzle slots as shown in the drawing first. According to the size of the tank to choose the appropriate angle of the nozzle to ensure the cleaning impact strength. The larger the tank to be cleaned, the smaller the nozzle sector angle should be. (better to cover the entire tank completely)
Parameter:
Material
316L SS PPS, PEEK
Spray Angle
360° Coverage
Working Pressure
2-10 bar
Working temperature:
95℃
Features:
Tightness
The leakage point is sealed with a dynamic seal, which reduces leakage and saves cleaning fluid while generating a greater water flow impact.
Higher impact force
The nozzle adopts a unique stabilized flow design with increased pressure and constant rotation speed, which can make the jet stream more concentrated, with greater impact force and more complete cleaning, the cleaning diameter can reach 6 meters.
Anti-clogging
Independent gear box with anti-clogging design makes it sturdy and durable and built-in gear reduction mechanism makes the cleaner work more stable.
The pressure generated by the cleaning fluid is utilized to drive the internal gear reduction mechanism, which drives the cleaner to rotate, and the water flow is sprayed out in sector shape. The rational layout of several nozzles with the rotation of the cleaner leading to 360 ° cleaning without dead zone.

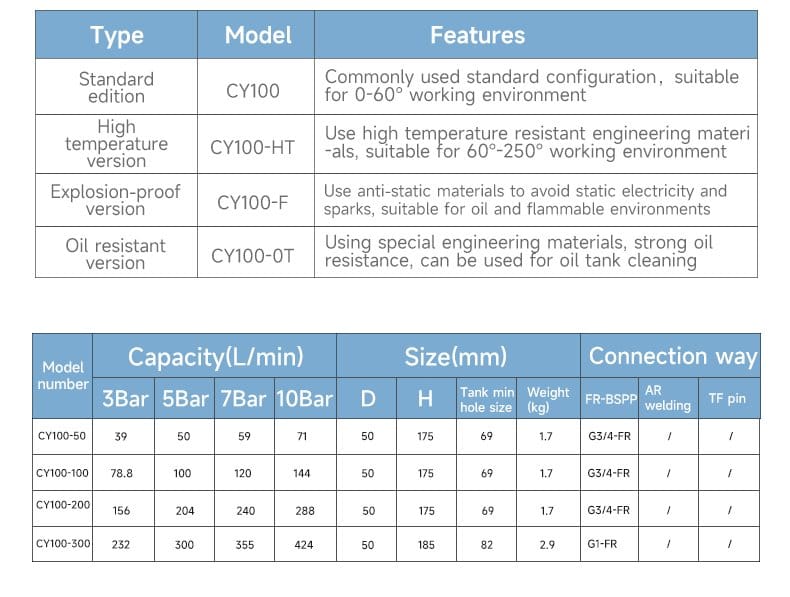

Performance:

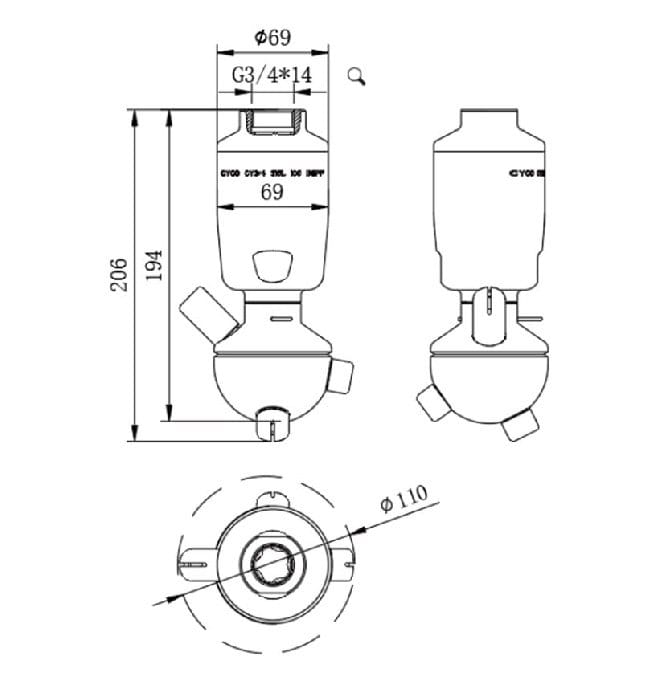

Product Size:
Application:
Dedicated to the milk, food, pharmaceutical, beer, chemical, industrial fermentation and the need for high-impact cleaning occasions.
