Livestock Breeding Humidification
Meat consumption demand has grown steadily with the improvement of residents’ living standards, which has promoted the rapid development of the livestock and poultry breeding industry. At the same time, a large number of farms of different sizes have emerged, and the potential environmental problems caused by livestock and poultry breeding have attracted increasing attention. The environmental humidity control of the farm can minimize the pollution problems in livestock breeding. At the same time, it has a certain disinfection effect on the farm, can repel insects and deodorize the odor, which plays a great role in promoting the healthy and rapid development of animal husbandry.
High-pressure micro-mist humidification for livestock breeding:
Humidifiers in farms generally use high-pressure micro-mist humidifiers. The working principle is to use a high-pressure plunger pump to increase the water pressure to 4-7Mpa, and then atomize the pressurized water through a high-pressure-resistant transportation pipeline by a professional nozzle to produce micro-mist particles of 3-15 μm, allowing it to quickly It absorbs heat from the air to vaporize and spread throughout the farm, thereby completing the purpose of humidifying and cooling the air in the farm.
Livestock breeding air-water mixed dry mist humidification:
Under the general trend of large-scale domestic livestock and poultry breeding, large-scale breeding is prone to breed bacteria and odors, and various infectious diseases are rampant. It has a great impact on the healthy growth of livestock animals. In this case, it is particularly important to have a dry mist humidifier to control humidity, purify the air and remove odors. Dry mist humidifier has many uses such as air humidification, cooling, dust reduction, air purification, anti-static, and improving ambient air quality. The dry mist humidifier uses air-water mixing atomization technology to atomize water and liquid into the air, increase air humidity, reduce flying dust in the air, purify the air, and promote the healthy growth of livestock animals.
Advantages of high pressure micro mist humidification system:
- Low energy consumption: Each unit consumes only 2.2-4KW electricity per hour, which is about 1/50 of the energy consumption of traditional air-conditioning dust reduction.
- Low cost: The purchase cost is low. It is only about 1/25 of the traditional air-run dust reduction.
- Large spray volume: Each device can meet the requirements for an area of about 6,000 square meters.
- Excellent quality: The core components of the main machine are all imported from Germany, with a lifespan of more than eight years. PLC intelligent human-machine interface control makes it truly maintenance-free.
Advantages of dry mist humidification system:
- Humidity control: Optional temperature and humidity automatic control sensors can realize automatic humidification and cooling according to the actual air temperature and humidity;
- Time setting: Multiple time periods can be set according to needs.
- Manual control: Touch the run icon to start spraying the device, touch the stop icon to stop spraying.
- Cycle control: When running work, you can set the running time period and stop time period to automatically cycle.
- Fault display: When the following faults occur in the equipment, power supply phase loss, motor overload, water tank shortage, sensor failure. The light on the page lights up red.
- Small particle size: high-quality spray particles with an average particle size of 7.5 microns to avoid wetland occurrence;
- Effective anti-clogging: air path delay design effectively prevents nozzle clogging;
- Easy to install: Just connect the air compressor and you can spray easily;

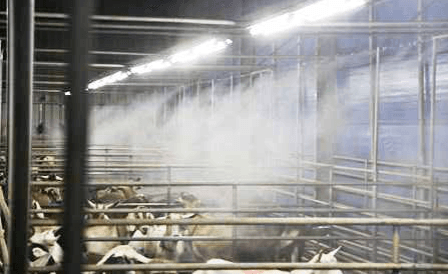

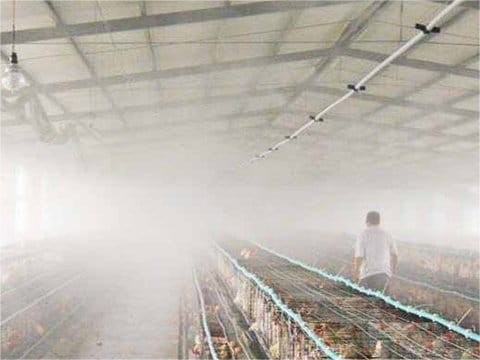

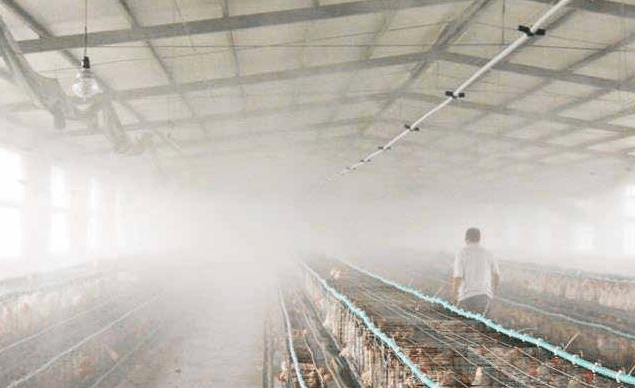

Use Cases:
