Electronics Factory Humidification
At present, domestic electronic factories are becoming more and more strict. In order to ensure the quality of products, users must strictly control the temperature and humidity in the production factory, especially the humidity. If it is too dry, static electricity will easily be generated in the factory, causing damage to integrated circuits.
Features:
- Prevent production efficiency from decreasing due to static electricity
- Fire prevention (static electricity countermeasures)
- Prevent paper moisture content from decreasing
Product Usage:
1. Eliminate static electricity and improve quality
The change of humidity in the environment of each electronics factory is also an issue that requires special attention in daily management; maintaining a suitable humidity environment plays a decisive role in the production and storage of electronic products or components in the electronics factory; if it is controlled If the humidity in the electronics factory is not up to standard or is too low, it will be easily interfered by static electricity and dust;
2. Prevent computer components from being damaged when the air is dry.
Too dry air will also cause dust to fly in the air, affecting the physical and mental health of workers and reducing work efficiency! Generally speaking, the temperature of electronic factories is controlled at around 22°C, and the relative humidity is controlled between 40 and 60% RH. In this environment, people feel comfortable and static electricity disappears.
3. It has the functions of air humidification, purification and dust reduction.

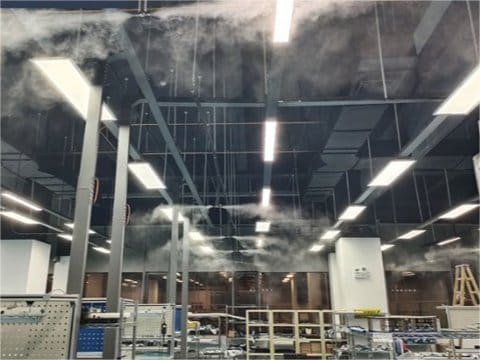

Therefore, Changyuan spray can adjust the humidity of the workshop environment in real time for the electronic processing industry. It can effectively avoid the various hazards caused by many unfavorable factors such as static electricity and dust. This is helpful for the production of the electronics factory workshop and improving product quality. very huge.
System advantages:
- Controllable pressure setting, controllable coverage
- Gas power, two-stage atomization system;
- High-quality spray particles to avoid wetland occurrence;
- Optional temperature and humidity automatic control sensors can realize automatic humidification and cooling according to the actual air temperature and humidity;
- Installation is quick and easy, as long as the air compressor is connected, spraying can be done easily;
- Maintenance-free design, long service life and good spraying status can always be maintained.
System characteristics:
- Effectively prevent static electricity problems during installation, assembly and inspection.
- Prevent dirt and dust from adhering
- Use dry mist humidification to save energy and prevent electrostatic damage to semiconductor components.
- Compared with other humidification methods, the humidifier has the significant advantages of being maintenance-free, no dripping, low energy consumption, fine atomization particles, high atomization energy efficiency, and fast humidification speed.
- It has multiple uses such as air humidification, purification, anti-static, cooling, and dust reduction.
Atomization principle:
It works on the latest vacuum siphon principle to generate ultra-fine mist of a two-stage atomization system. The spray particle diameter is 5-7.5μm. It looks more like smoke than mist, and as soon as it comes out of the nozzle, it dissolves in the air and turns into humidity. In addition, because the dry mist is very fine, even if it touches something, it will not be adsorbed or repelled. Therefore, it is also called “non-wetting mist”.
Through the mixing of two fluids, air and water, and three gasification and shearing effects, the sonic air ejected from the nozzle is again atomized, and the aerosol that is also atomized from the other nozzle collides with each other and is repeatedly sheared. , generates sound waves of 33,000-40,000 Hz to make the droplets more granular, and the equalization atomization principle achieves multi-stage atomization to obtain good spray effects.
